DNM 4500 4th Generation

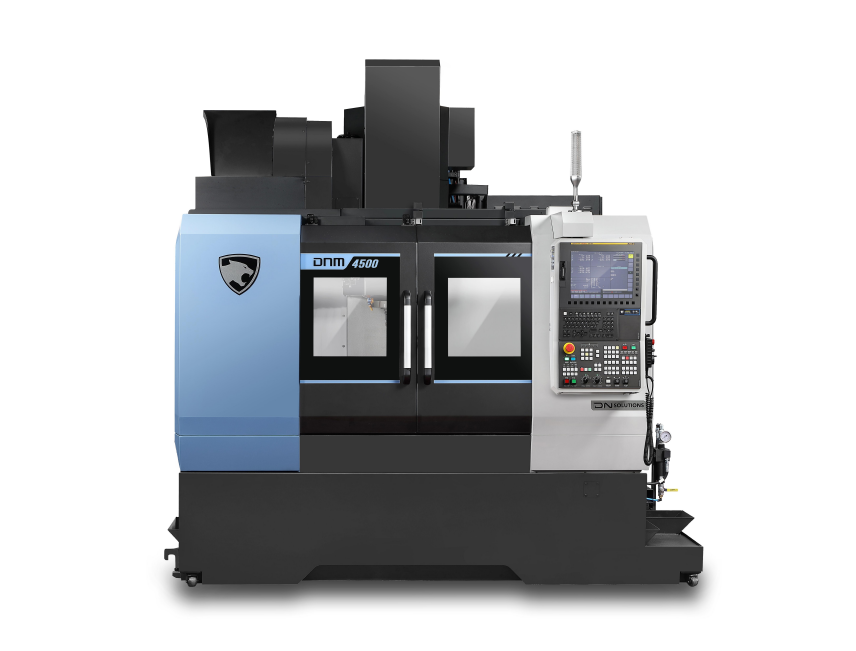

DNM 4500 4th Generation is a VMC supplied by DN Solutions(Doosan Korea). This machine is a 3-axis machining center with a C-frame structure in which the milling head moves up and down along the column (Z-axis), the saddle moves back and forth on the bed (Y-axis), and the table moves from side to side on the saddle (X-axis). The table is a rectangule, and the size is 1000x450 mm. The stroke is X 800 mm Y 450 mm Z 510 mm.
| Category | Item | Specification |
| Travels | Stroke X[mm] | 800
 |
| Stroke Y[mm] | 450
| |
| Stroke Z[mm] | 510
| |
| Rapid traverse(X)[m/min] | 42 | |
| Rapid traverse(Y)[m/min] | 42 | |
| Rapid traverse(Z)[m/min] | 36 | |
| Distance from spindle nose to table surface[mm] | 150
300 350 450 | |
| Table | Workpiece allowable Load[kg] | 600 |
| Table Size[mm] | 1000×450 | |
| Category | CNC brand | Fanuc
HEIDENHAIN Siemens |
| CNC system | DN Solutions Fanuc i Plus S828D TNC620 | |
| Origin | Korea |
| Spindle name | H1-1(Fanuc) | H1-2(Fanuc) | H1-3(Fanuc) | H1-4(Fanuc) | H1-5(HEIDENHAIN) | H1-6(HEIDENHAIN) | H1-7(Siemens) | H1-8(Siemens) |
| Taper | 7:24 taper No. 40 | 7:24 taper No. 40 | 7:24 taper No. 40 | 7:24 taper No. 40 | 7:24 taper No. 40 | 7:24 taper No. 40 | 7:24 taper No. 40 | 7:24 taper No. 40 |
| Rotational speed[rpm] | 8000 | 8000 | 12000 | 15000 | 12000 | 15000 | 12000 | 15000 |
| Power[kW] | 11(Cont)！18.5(S3 15%) | 11(Cont)！15(S3 25%) | 11(Cont)！18.5(S3 15%) | 11(Cont)！18.5(S3 15%) | 10(Cont)！17(S6 25%) | 10(Cont)！17(S6 25%) | 11(Cont)！16.5(S6 40%) | 11(Cont)！16.5(S6 40%) |
| Torque[Nm] | 117.8(S3 15%) | 286(S3 25%) | 117.8(S3 15%) | 117.8(S3 15%) | 108.6(S6 25%) | 108.6(S6 25%) | 141(S6 40%) | 141(S6 40%) |
| Transmission | Direct drive spindle | Direct drive spindle | Direct drive spindle | Direct drive spindle | Direct drive spindle | Direct drive spindle | Direct drive spindle | Direct drive spindle |
| Tool holder taper | 7:24 taper No. 40 HSK-A63 | No. of tool storage[ea] | 30 40 | Tool diameter[mm] | 80(A)!125(B)(30 Tool) 76(A)!125(B)(40 Tool) | Tool length[mm] | 300 | Tool weight[kg] | 8 | Tool change time(TTT)[s] | 1.2 | Tool change time(CTC)[s] | 3.2 4.1(ATC Shutter) |
| Axis | X | Y | Z |
| Drive | Ball screw | Ball screw | Ball screw |
| Qty | 1 | 1 | 1 |
| Product | Description |
 Coolant Through Spindle(TSC or CTS) | 20Bar 30Bar 70Bar |
 BK Mikro | Tool breakage detection(Magazine) |
 OMP60(Renishaw) | Workpiece measurement(Optics) |
 RMP60(Renishaw) | Workpiece measurement(Wireless) |
 TS27R(Renishaw) | Workpiece measurement Tool length measurement |
 LTS(Renishaw) | Tool length measurement |
 NC4(Renishaw) | Tool diameter measurement Tool length measurement |
 Oil cooler | Spindle temperature control |
 Oil chiller | Coolant temperature control |
